Last Updated by LaBelle's on 2024-04-23
1. The polarity of the input terminal and the output terminal are the same polarity is a non-inverting amplifier, and the polarity of the input terminal and the output terminal are opposite polarity is called an inverting amplifier.

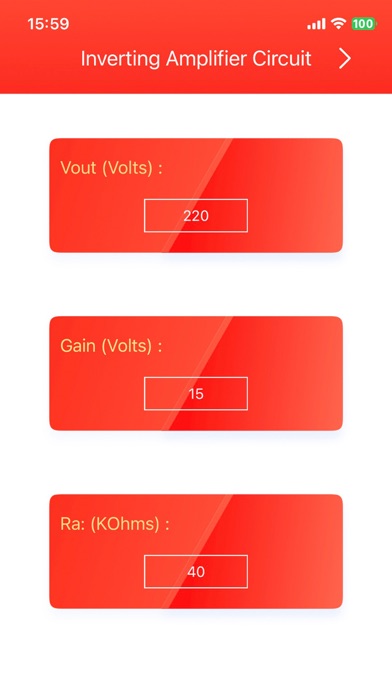

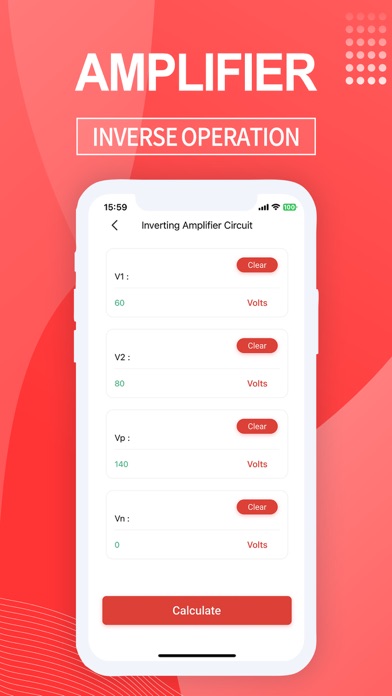

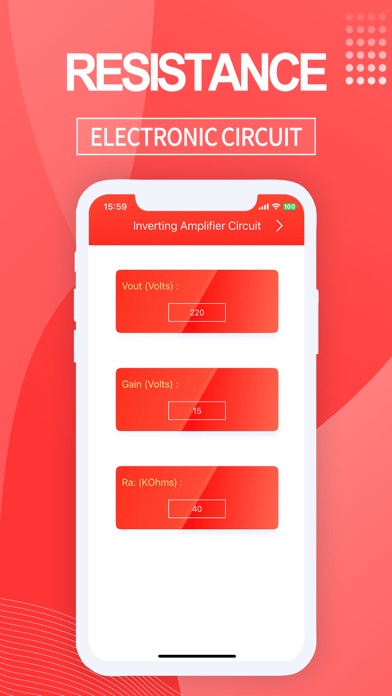

2. Inverting Op Amp Resistor Calculator: Calculate gain from the relationship of input to output in an amplifier circuit.
3. An operational amplifier in an electronic circuit has a non-inverting input terminal and an inverting input terminal.
4. The inverting amplifier circuit has the function of amplifying the input signal and inverting the output.
5. PS: The gain voltage value is a negative number, indicating that the waveform is inverted.
6. Gain is the ratio of Vout to Vin, ie Vout/Vin= (-I1xR2) / (I1xR1) =- R2/R1.
7. amplifier.
8. Liked Inverting Amplifier Circuit? here are 5 Utilities apps like Megaphone: Voice Amplifier; Megaphone - Voice Amplifier; My Microphone: Voice Amplifier; Hearing Amplifier; Bass Booster Volume Amplifier;
